Description

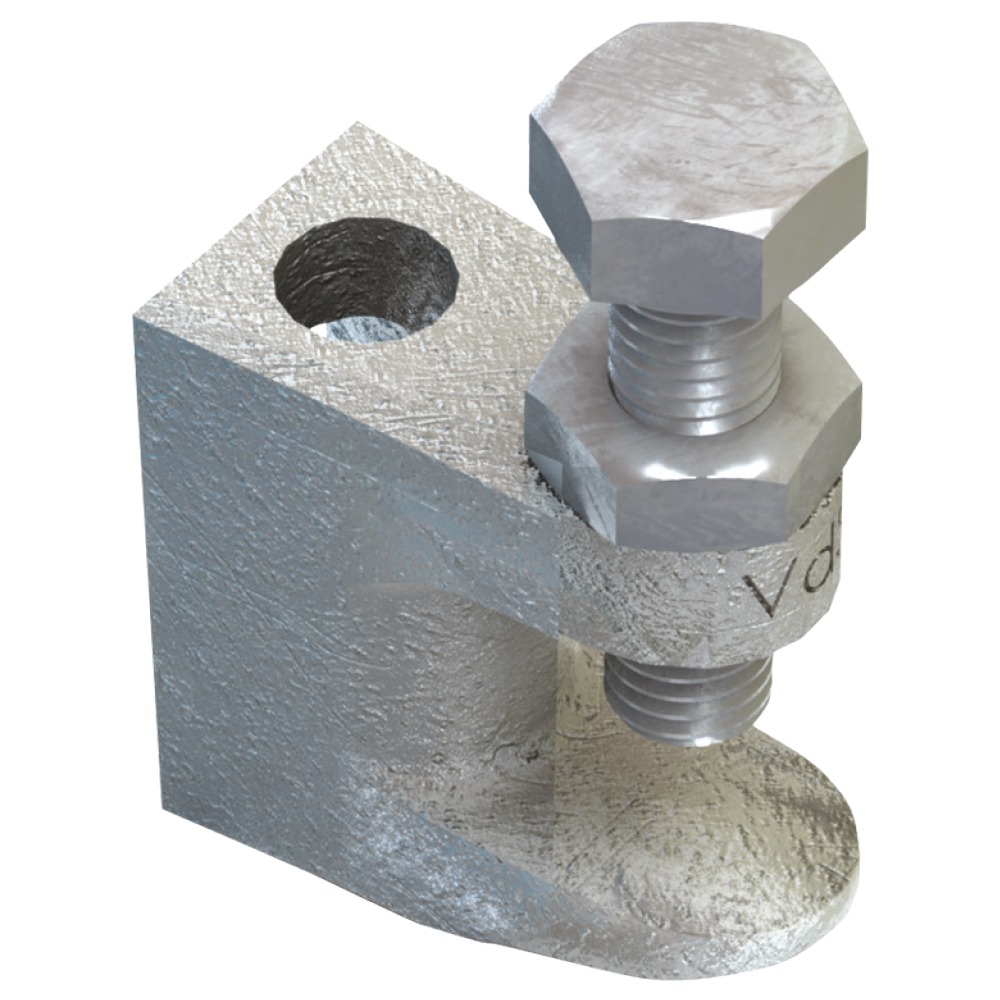

M12 Flange Clamp – LINDAPTER Quality
LINDAPTER Beam Clamps are manufactured to the highest specification – Fully Certified & Approved.
When using Beam Clamps with through hole the threaded rod can easily be adjusted in the height even after installation.
Furthermore, Beam Clamps with through hole can be used for metric and inch threaded rods (no double storekeeping necessary).

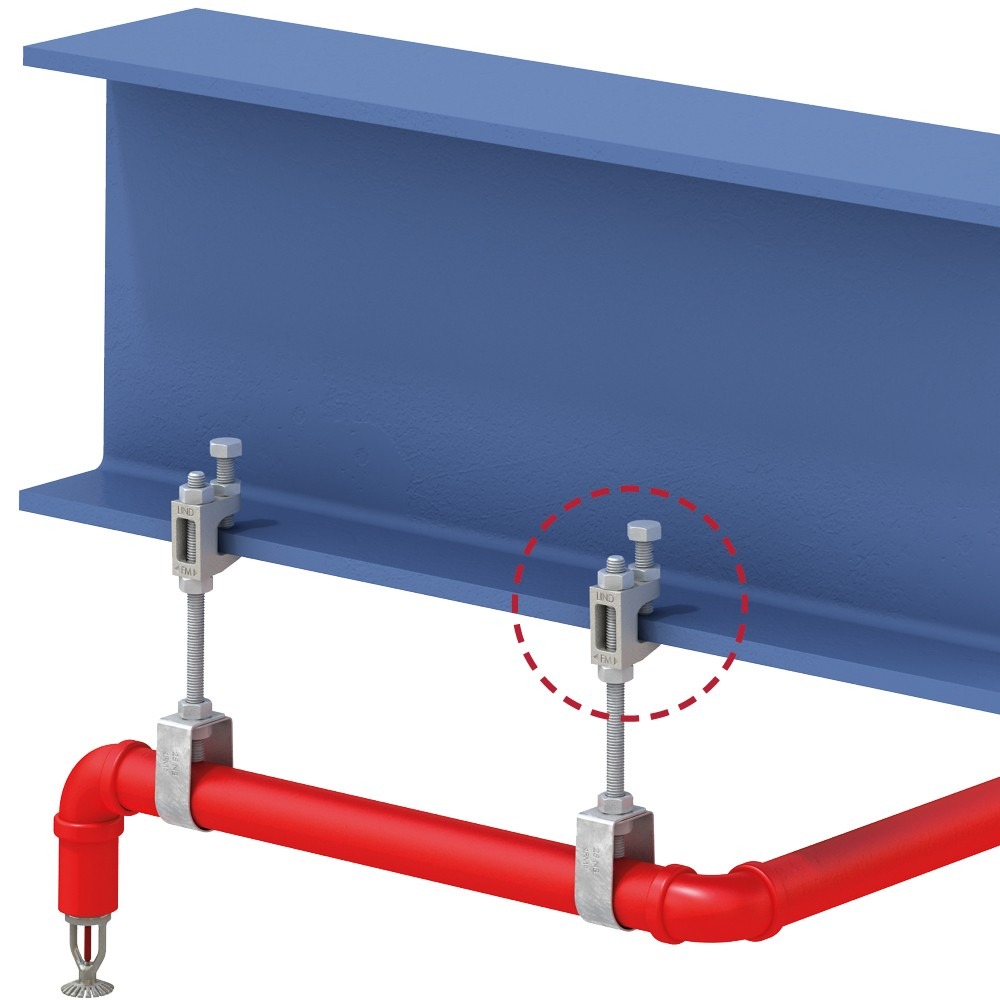

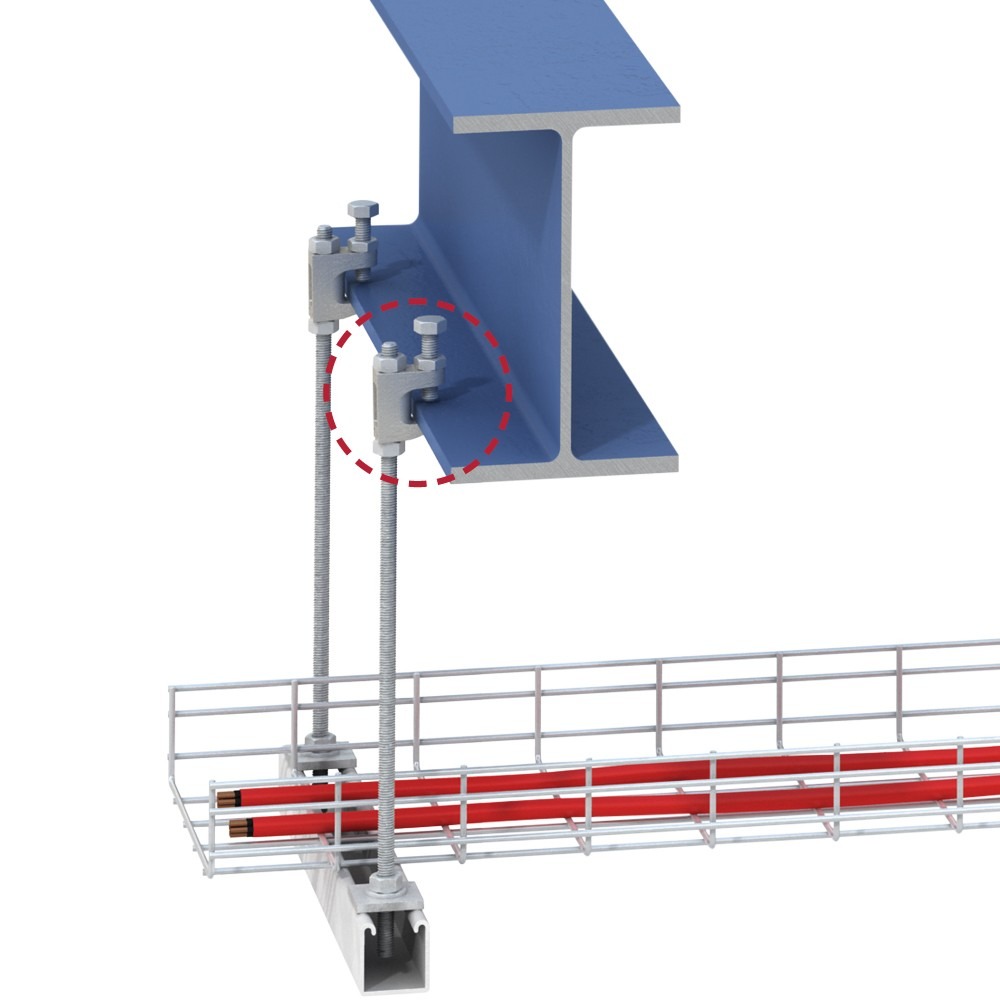

- FM, VdS and UL approved product, therefore certified for use in sprinkler systems and cable management
- Body made of cast iron, Zinc plated,casting tolerance acc. to DIN 1684 GTA/17

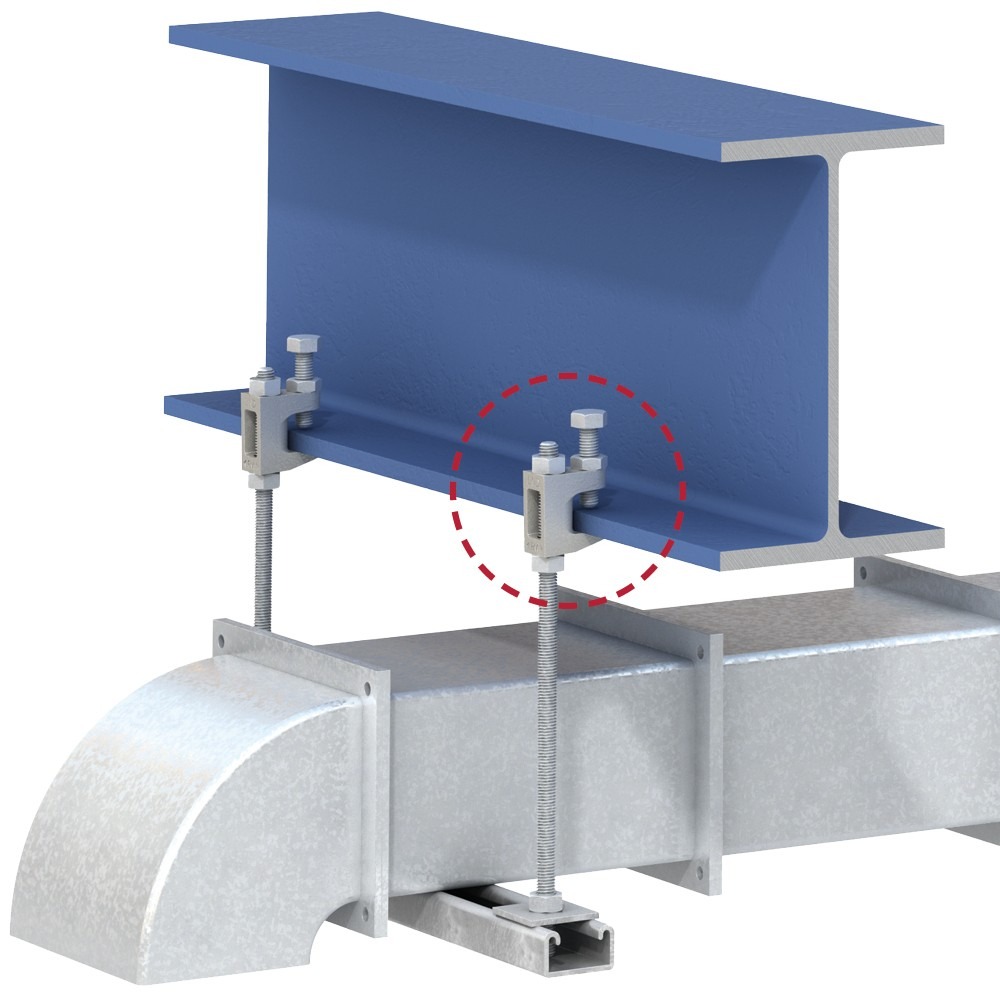

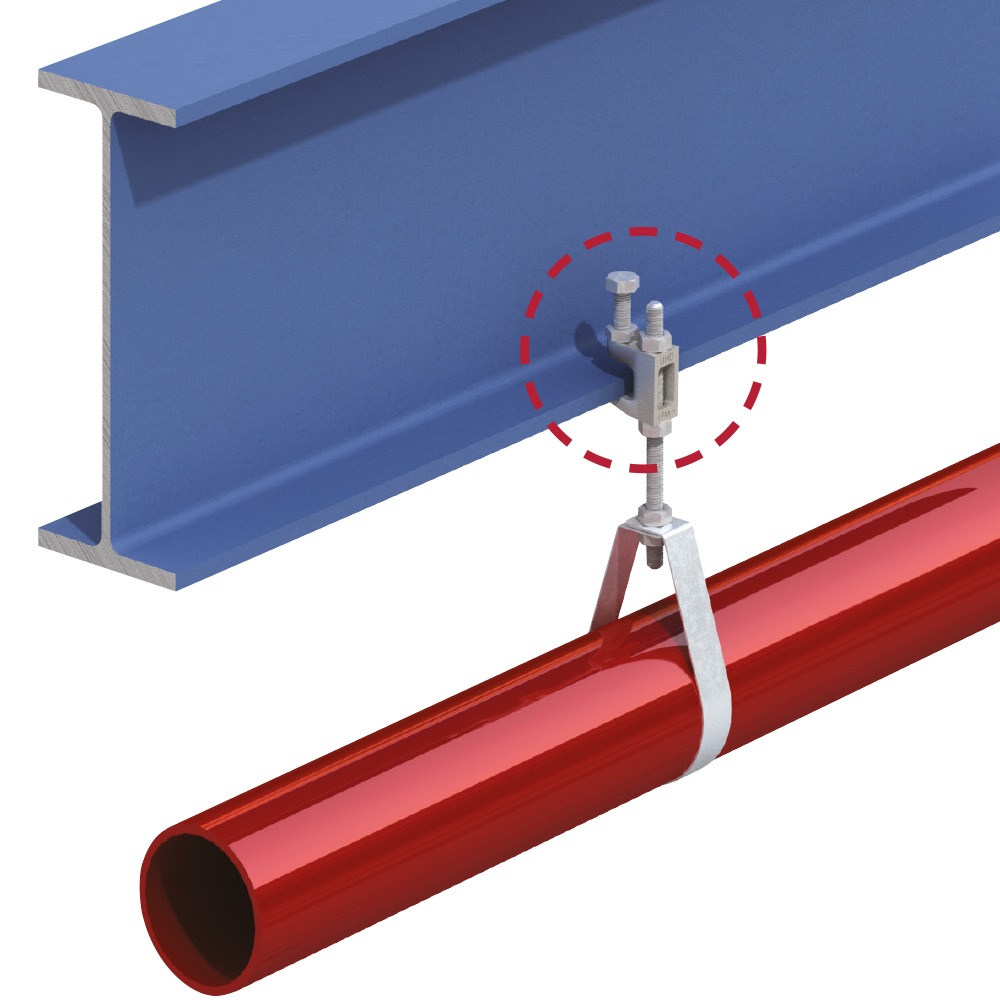

- For Suspending Appliances from Steel Beams- For use with M12 Diameter Threaded Stud
- 13mm Back Hole (Unthreaded)
- Bright Zinc Plated (BZP) – 6-8 Microns
- Load Rating 254kg

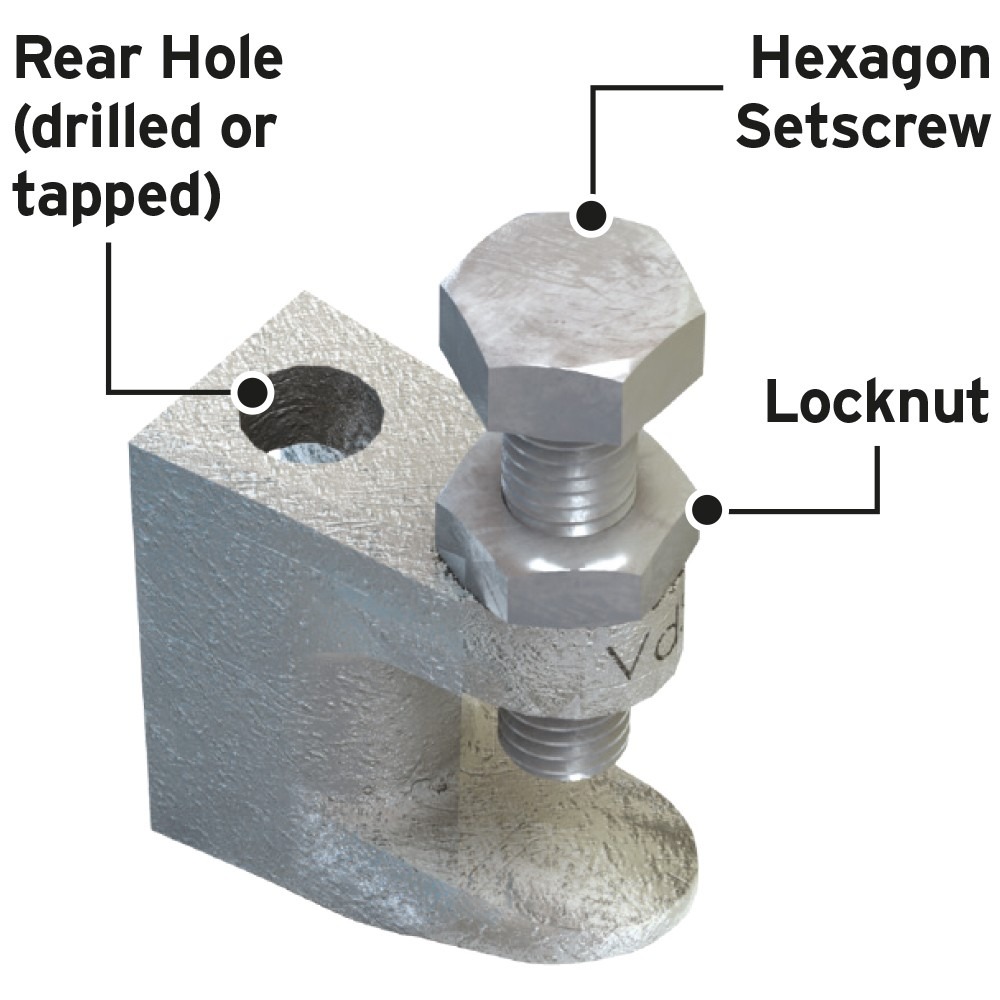

- With Hexagon Head Screw DIN933 8.8, threaded end with cup point (CP) according to EN ISO4753 and locknut DIN 439
- Clamping thickness 0-20mm
- Tightening set screw – 13 Nm
- Torque lock nut – 22 Nm
- LINDAPTER product code: FL312D , BTS equivalent FLM12
- Sold Individually
