Description

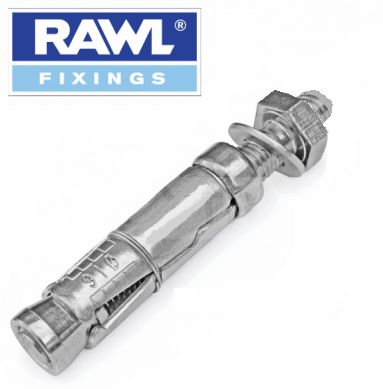

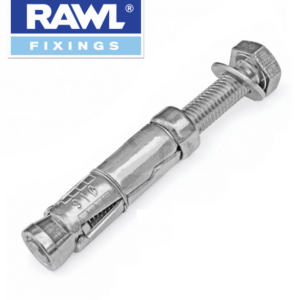

M6x60 Rawl Shield Anchor Projecting.
- Product recommended for application requiring fire resistance.
- Three-pieces expanding sleeve of Maximum Expansion provides Optimal Load and Safety of use in any substrate/underlying layer.
- Shield Length – 40mm
- Total Nut/Bolt Length: 116mm / Threaded Part 85mm
- Provides secure fixing into concrete, block or brickwork
- Bright Zinc Plated (BZP)
- Max fixture thickness 60mm
- Drill hole diameter 12mm
- Minimum hole depth 50mm
- Recommended torque for concrete 15Nm
- Rawl Product ID: 44515
- Sold Individually
